Applications

An application is one deployable thing — a compose file and the history of every version of it you have pushed. It belongs to an organization, and it is where you spend most of your time in the control panel.

There are three levels, and you move between them with the breadcrumb trail at the top of every page:

Finding your way around

Every page below Applications carries a breadcrumb trail: each level you came through is a link, and the page you are on is the last entry and is not.

Click any earlier crumb to step back a level. The trail is the same on the variables page, the logs page and the new-deployment form, so you are never more than one click from the application you were looking at.

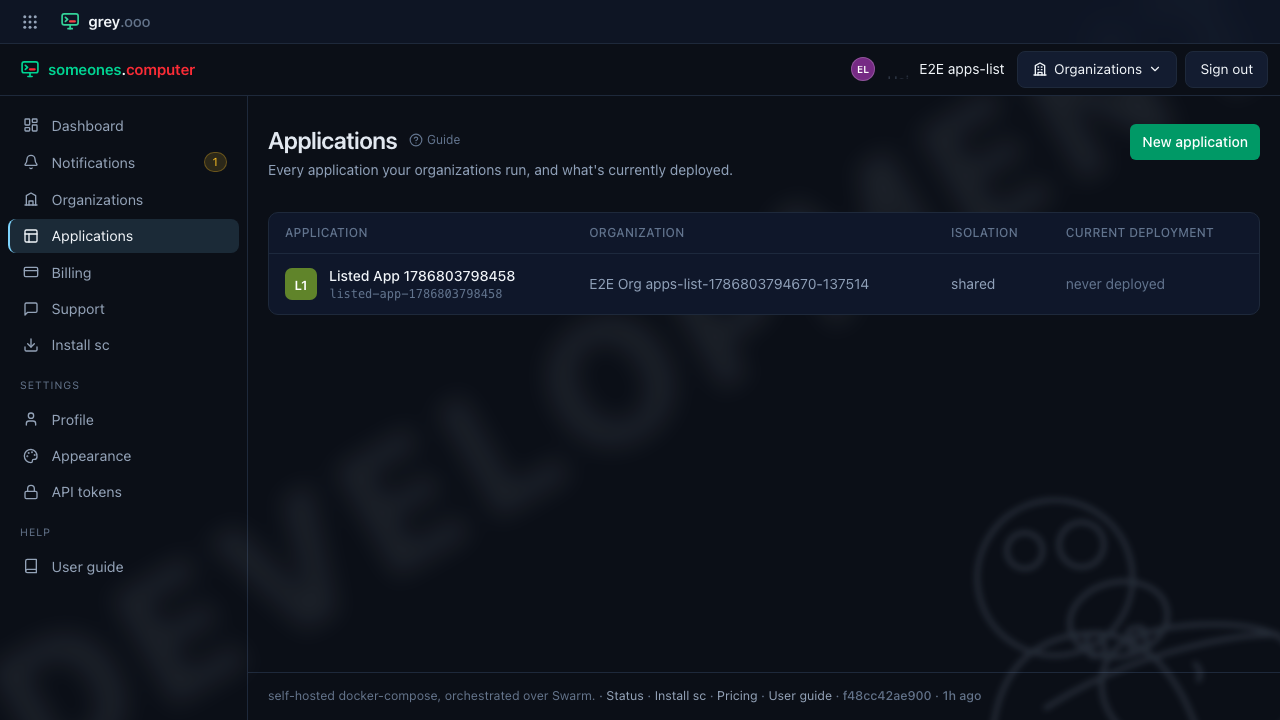

The application list

The Applications link in the sidebar lists every application in every organization you belong to, with what is currently deployed on each.

Click an application's name to open its dashboard.

Icons

Every application has an icon, shown here, on its dashboard and in its organization's application table. Until one is stored for it, the icon is drawn from the application's name and colour-keyed to its slug — so it is stable, and it never changes when you rename the application.

Deploy something that serves a favicon and it becomes the icon by itself. Each time a revision goes live the platform fetches the application over its own hostname, reads the icons the page declares (including a web-app manifest's, and /favicon.ico), and adopts the best one. Nothing to configure, and nothing breaks if there is no favicon — the drawn icon stays.

An operator can store an icon by hand with php bin/console app:application:icon <slug> <file>. An icon set that way is kept: later deploys will not replace it. --clear goes back to the drawn one, and --from-favicon re-checks the deployed application immediately instead of waiting for the next deploy.

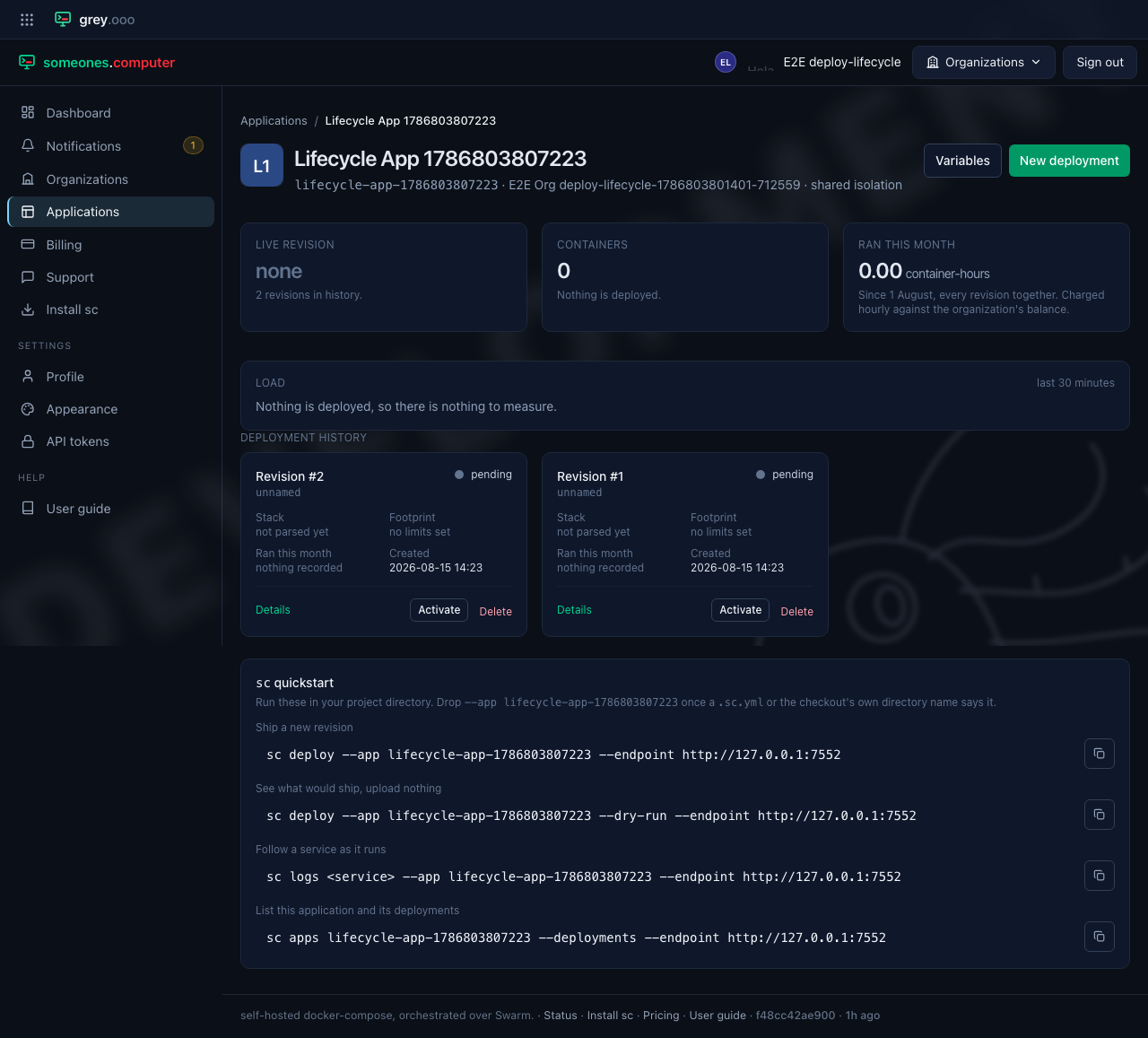

An application's dashboard

Three figures at the top say what the application is right now:

• Live revision — which revision the application is serving, and what state it is in. Click the number to open that revision. "None" means nothing is deployed, which is not an error — a newly created application has no revisions and answers on no address until you deploy one.
• Containers — replicas summed across the live revision's services. This is the figure billing counts.
• Ran this month — container-hours across every revision since the 1st. This is what the organization is charged for, an hour at a time — see Billing. The rates themselves are still placeholders (/pricing says so on the page), but the meter behind them is real and the figure here is the one the charge is computed from.

Below those:

• Not running what was asked for — appears only when the swarm is reporting fewer containers than the revision asked for. A deploy still rolling out reads short for a few seconds; anything longer is worth a look.
• Addresses — every way the application can be reached from outside: the hostname the platform assigned it, any of your own domains pointed at it, and any raw TCP/UDP port it publishes. The same list sc reads, so the page and the CLI cannot disagree.

The Addresses panel is shown for any live revision, including one that is reachable from nowhere — which is the case worth reading. The platform gives a service a hostname and a certificate once it knows the service speaks HTTP, and it recognises the usual ports (80, 8080, 3000, 8000, 5000) on their own. A service listening anywhere else has to say so, in the compose file:

services:
  lab:
    image: ghcr.io/acme/lab
    x-someones:
      http: 8473

That declares a container port, not a published one — nothing is exposed to the world except through the edge, with TLS terminated for it. x- keys are part of the compose spec, so the file still runs unchanged under docker compose up.

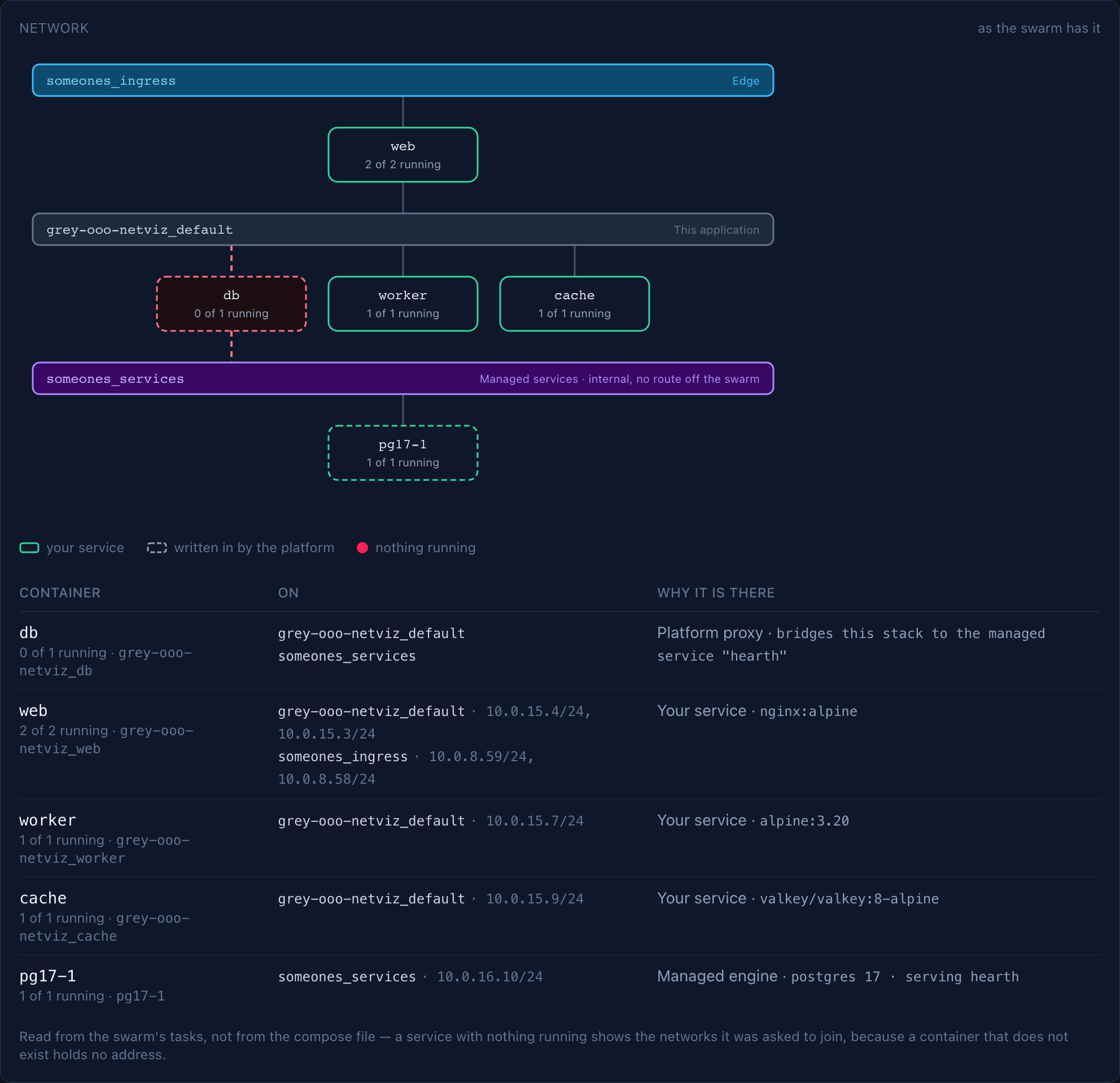

Network

What the application is plugged into, read off the swarm rather than worked out from your compose file — so it shows what is actually attached, not what was asked for.

Networks are drawn as bars and containers as boxes on them, ordered the way a request travels:

A box straddling two bars is what bridges them. A public service sits between the edge and your overlay; the db proxy a managed-service binding adds sits between your overlay and the engine's, which is the only way into a managed database — your own containers are never on that network.

A dashed outline means the platform wrote that container into your stack rather than your compose file doing it: the binding proxy, and the engine behind it. A red one means nothing is running.

The table underneath carries the two things a picture cannot: the swarm's own name for each service, which is what docker service ps wants, and the overlay address it answers on.

The panel loads when you scroll to it, because it asks the swarm live each time. A service with nothing running shows the networks it was asked to join — a container that does not exist holds no address.

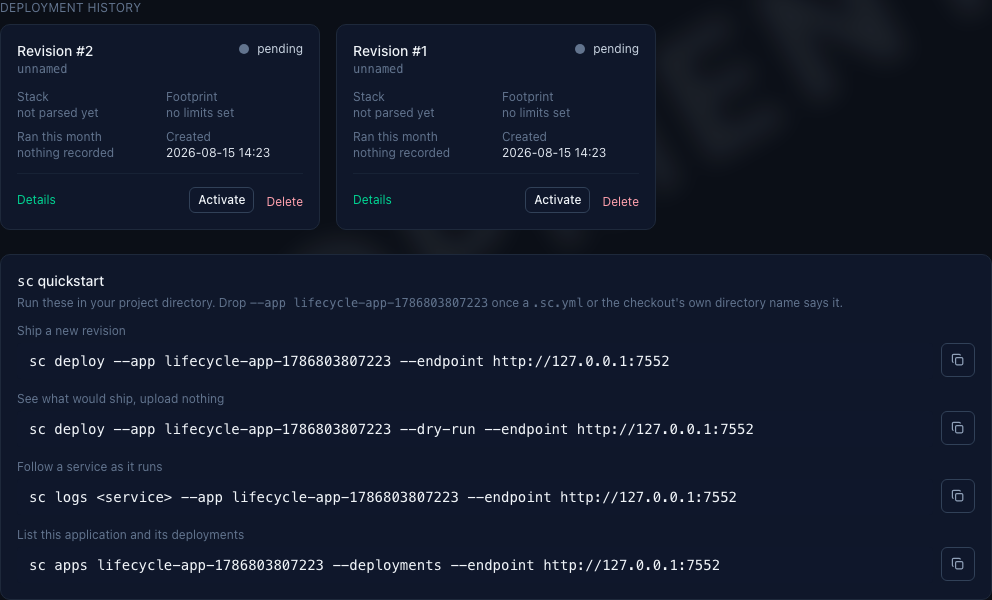

Deployment history

Every revision is a card. Cards are the unit of comparison: the same four figures on each, so you can see at a glance which revision doubled its replicas or which one has been quietly running all month.

A failed revision shows why on the card rather than making you open the build log to find out.

Details opens the revision's own dashboard. Where the revision is the live one and running, each service also links to its live log. Owners and admins get Activate / Stop and Delete here; rolling back is the same gesture as rolling forward — pick the revision you want and activate it.

The list updates itself: a build starting, finishing or failing moves a card without you reloading. See live updates.

On a narrow screen the cards stack rather than scrolling sideways:

A revision's dashboard

The application page answers "which revision is live?". A revision's own page answers "what is this revision?" — the things that used to require reading the raw compose or a build log.

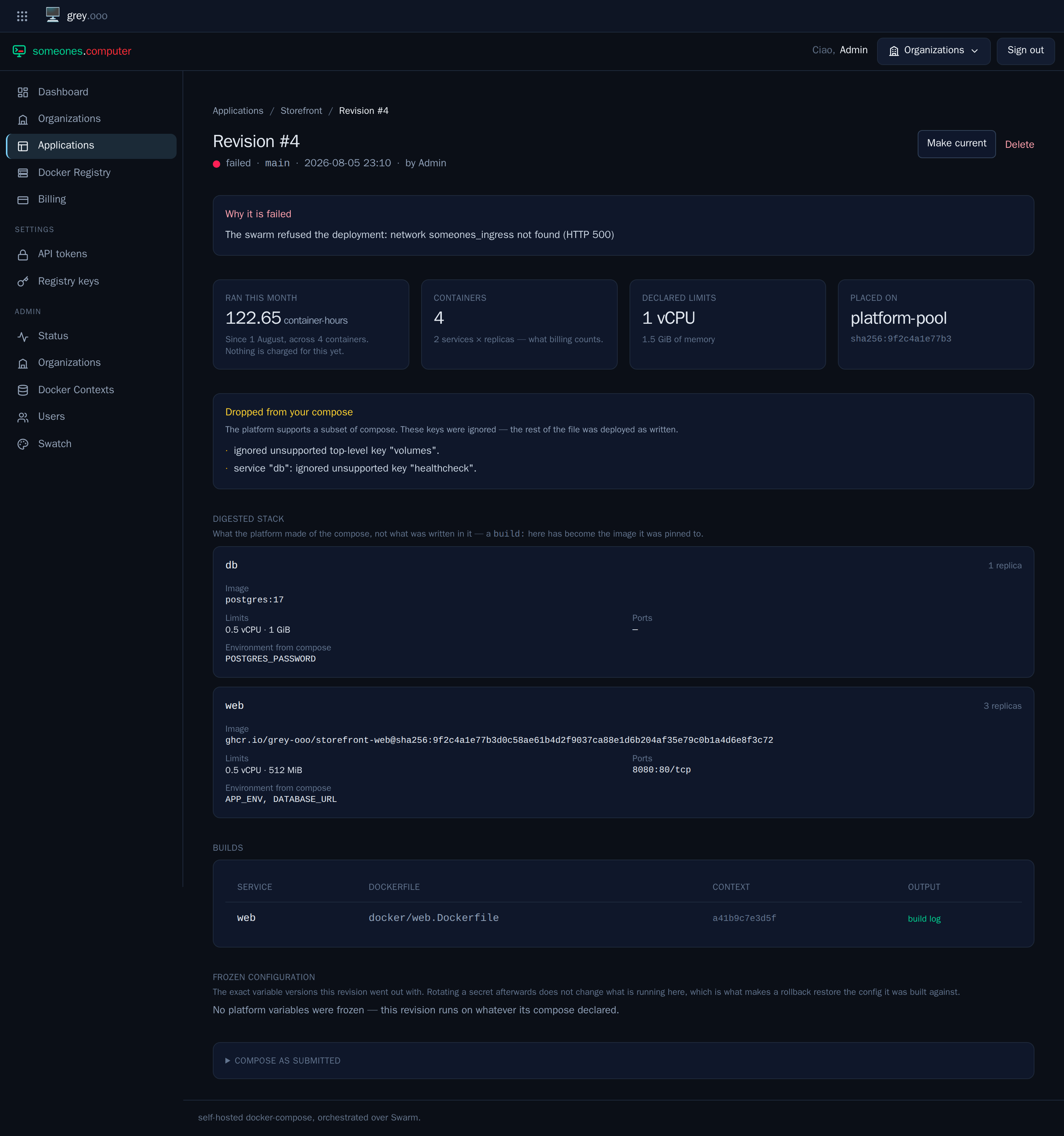

Header — the sequence number, its name (sc defaults this to your branch, so the normal shape is a revision per branch), its state, when it was recorded and by whom. A revision that failed carries the reason in full underneath, not truncated:

Four figures — what it ran this month, its container count, its declared limits, and which Docker context it was placed on together with the digest of its spec.

Dropped from your compose — the platform supports a subset of compose, and anything outside that subset is stripped with a warning rather than rejected. This panel is those warnings. If you are wondering why a volumes: block seems to have done nothing, this is where it says so. It is absent when nothing was dropped.

Digested stack — what the platform made of your compose, which is not always what you wrote. A service declared with build: shows the image it was pinned to; limits appear in the units you wrote rather than the nanoseconds and bytes they are stored as. Environment variables from your compose are listed by name only — a compose file routinely has a password typed into it, and no page here will show you a value back.

Each service also says what happens on exit. restart: no makes a service a one-shot — a migration or a batch job, run once per replica and then finished, rather than a container the platform keeps restarting for ever. That distinction is the point: a job that has exited reads as done here instead of as a service that is down.

Builds — one row per service that shipped a build context, with the Dockerfile it used, the hash of the context that was uploaded, and a link to what the builder printed. A failed build keeps its log too; that is when anyone actually wants it.

Frozen configuration — the exact variable versions this revision went out with. Rotating a secret afterwards does not change what is running here, which is what makes a rollback restore the config the revision was built against rather than the old image with the new config.

Compose as submitted — collapsed by default: exactly what was uploaded, byte for byte.

Like the list it came from, this page updates itself while you watch. Opening a revision that is mid-build and leaving it there is a reasonable way to follow a build to its end.

Deployment states

A revision moves through these on its way to running, or stops at one of the last three. Lifecycles draws the same set as a diagram, with every move between them and who makes it.

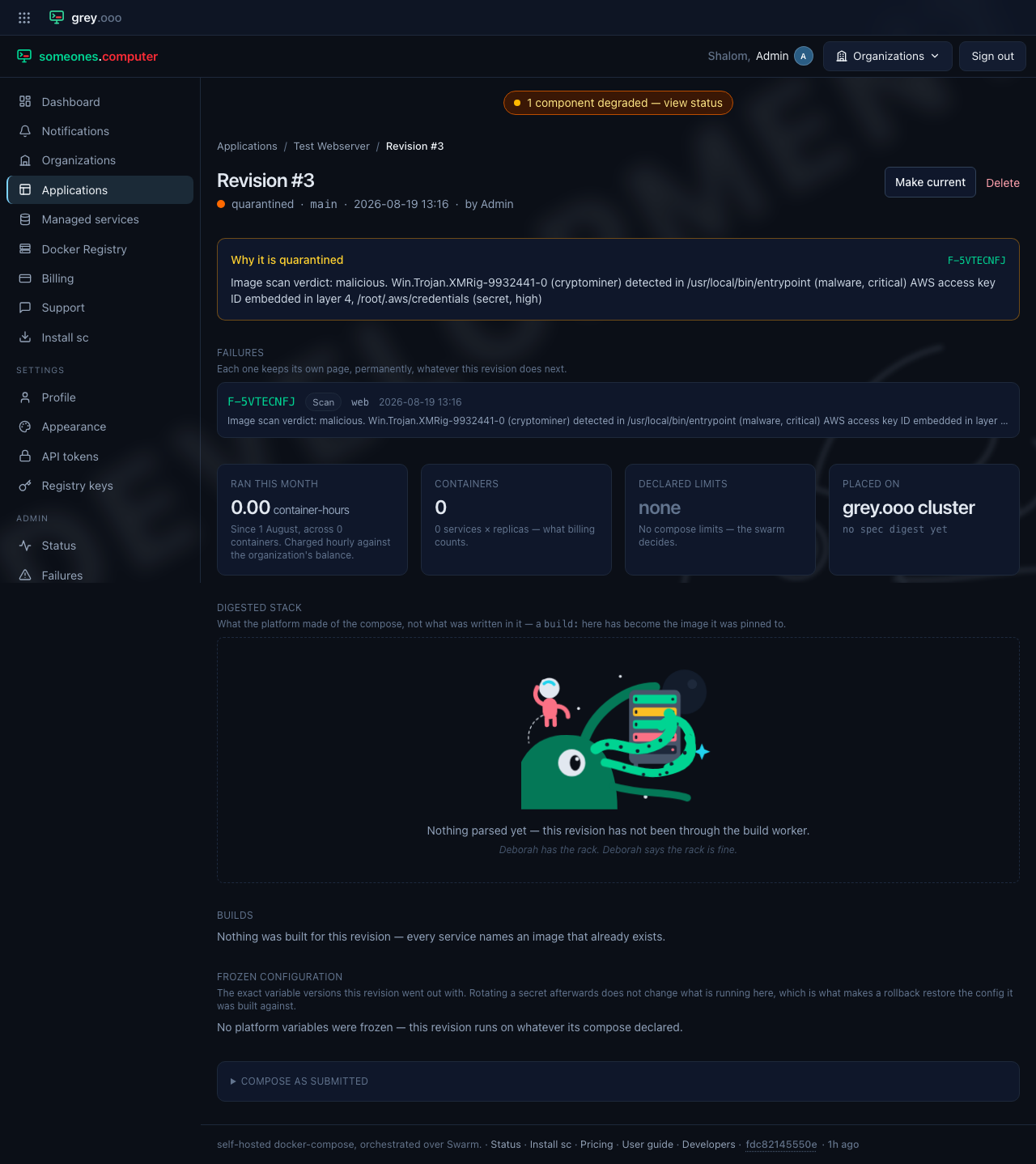

quarantined is not a build or compose problem, and redeploying will not fix it. Every image the platform builds, pulls or runs is scanned first, and one that turns up something — malware, or a live credential baked into a layer — is refused rather than run. For a build, a pull, or anything else caught before it ever went live, that costs you the deploy, not the site. The one exception: a signature update can flag an image that is already running, and there the platform takes that stack down too rather than leave a flagged image serving traffic until someone notices — so quarantine can mean losing the site as well as the deploy. The revision's own page shows the full reason, including what the scan found:

Only an operator can act on a quarantine — clearing it if it turns out to be a false positive, or upholding it, which moves the revision to failed and carries the same reason forward. If you think a quarantine is wrong, ask us.

A revision that stops running has not been deleted. Its images are kept and it goes back to built, ready to be activated again — including when the platform took the stack down rather than you. See Lifecycles for the three things that do that, and how much warning each one gives.

What "ran this month" really counts

Container-hours are derived by pairing each container's observed start with the stop that follows it, per container — three replicas running the same half hour are ninety container-minutes, not thirty.

Two honest limitations, both stated on the page rather than rounded away:

• A start with no stop means either the container is still running (billable to now, and the platform checks whether the swarm still reports it) or its stop was never observed. The second case is counted separately and the figure is labelled a floor rather than a total, because inventing an end time would be worse than admitting a gap.
• Attribution begins where the ledger does. Usage is attributed to the revision that was current when the container started, so an interval belongs to whichever revision actually ran it even if a newer one took over before it stopped. Usage recorded before the platform tracked this reads as "nothing recorded" on a revision card, though it still counts towards the application's and the organization's totals — see billing.
